The story thus far…

Earlier last year, I set up a NAS in my apartment. Since I had not written an update about it then, I am forced to describe it now. Let this be a lesson to all who think laxity will go unpunished!

The NAS

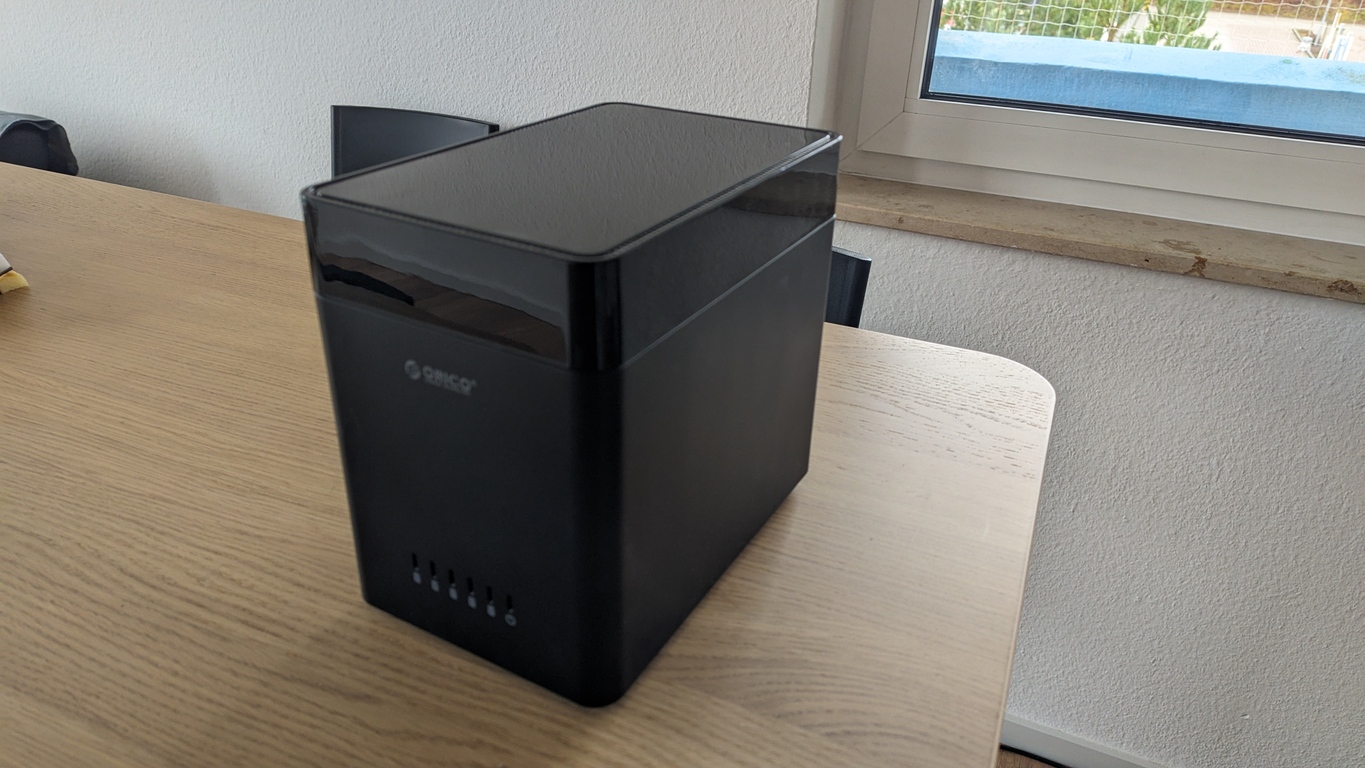

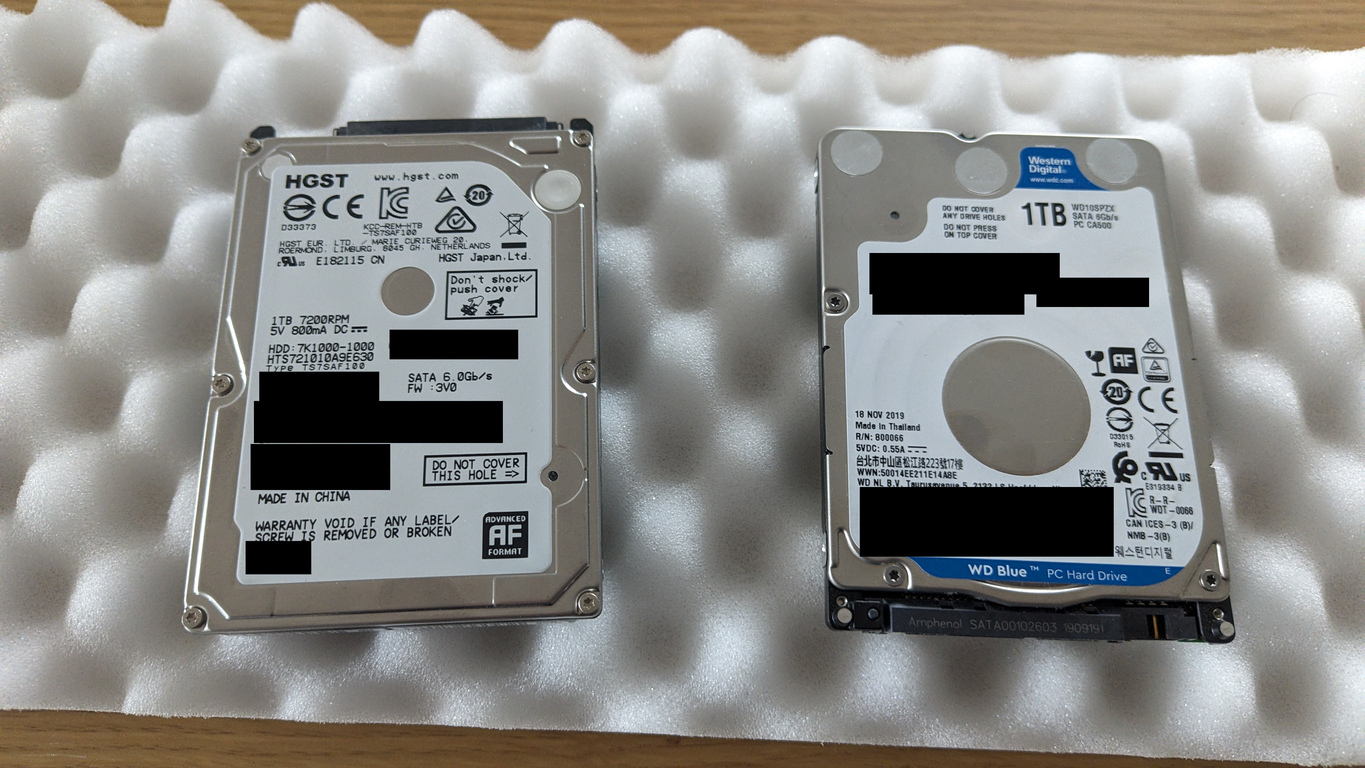

I bought a 5 bay enclosure for drives, and hooked it up to my home server. At the time, I was only able to get a 4 TB drive. So, I stuck the drive into the enclosure, formatted it with BTRFS, and moved most of my media library onto it. Later, I was able to get another 4 TB drive, and I had decided by now that in the long term, I want a ZFS pool. So, I managed to fish out two old 1 TB drives and started thinking on how best to set things up. In the course of my research, I found this article by Jim Salter. He’s also a host on a podcast I subscribe to, so I consider this article a trusted source of information.

My basic idea then, was as follows:

1. Use the large disk as a single VDEV, to be made into a mirror later.
2. Use the pair of small disks as a mirror VDEV, to be expanded later when funds allow for larger disks to be acquired.

After the research phase, came the implementation phase. Without any adventures, I ended up with a NAS setup that looked like this :

BTRFS
    1 disk of 4 TB
  Total capacity: 4 TB
ZFS pool
    vdev1
        1 disk of 4 TB
    vdev2 - mirror
        2 disks of 1 TB
  Total capacity: 5 TB

The BTRFS disk currently acts as a storage for my multimedia (home movies, family images, etc), and the ZFS pool acts as a target for backups of all my computers. (As a bonus: check out this video for how I run my backups.)

The Upgrade

In the Black Friday sales last week, I was able to snag a pair of 4 TB drives at a very reasonable price. I am finally the proud owner of some Seagate Ironwolfs. Or is it Ironwolves? How do plurals of brand names work?

All I needed to figure out now, was how the theory of “mirrors are easy to expand” translates into the practical of what commands one needs to execute, and in what order, to achieve this without accidental data loss. Turns out, in the case of ZFS, the cookie is exactly what is advertised on the tin, and the entire process was, once again, without adventure.

The guts and bones

So, its time to finally get your hands dirty. The idea here is simple: your mirror VDEV consists of two drives: lets call them drive1 and drive2. You should have two new drives of better quality. In my case, the better quality means larger capacity (and also, as I learnt as a result of this process, much faster). Lets call these drives drive3 and drive4. We first replace drive1 with drive3. This will take some time as ZFS manages this change (called resilvering). Since the drives are a part of a mirror VDEV, resilvering in this case just means copying all data from drive2 over to drive3. Once this is complete, we replace drive2 with drive4. ZFS will then spend more time resilvering, i.e., copying over data from drive3 to drive4. So, at the end of this process, you will have replaced two old drives in your ZPOOL with two new drives, and at the end of the second replacement, the pool will gain the qualities of the new drives (in my case, a sudden bump in capacity from 1 TB to 4 TB).

Exact commands

Lets now look at the exact commands to make the changes. I have provided output, which is sanitized to remove irrelevant information. For this section, we focus only on the the four drives described earlier, i.e., drive1, drive2, drive3, and drive4.

Step 1: Current Status

Run sudo zpool status to see your current pool. It should be something like

pool: tank
state: ONLINE
config:

	NAME        STATE     READ WRITE CKSUM
	tank        ONLINE       0     0     0
	  mirror-0  ONLINE       0     0     0
	    drive1  ONLINE       0     0     0
	    drive2  ONLINE       0     0     0

errors: No known data errors

You can also run sudo zpool list to see information about your pool.

NAME   SIZE  ALLOC   FREE  CKPOINT  EXPANDSZ   FRAG    CAP  DEDUP    HEALTH  ALTROOT
tank   928G   919G  9.28G        -         -     2%  99.0%  1.00x   HEALTHY  -

Here, we see that your pool is named tank, the drives in the mirror are drive1 and drive2, and that the pool’s current capacity is 928G.

Step 2: Take drive1 offline

Run the following command:

sudo zpool offline tank drive1

This will disable drive1 from your pool. ZFS will also complain at this point about your pool being in a degraded state. If you run sudo zpool status again, you will get something like this as output:

pool: tank
state: DEGRADED
status: One or more devices has been taken offline by the administrator.
	Sufficient replicas exist for the pool to continue functioning in a
	degraded state.
action: Online the device using 'zpool online' or replace the device with
	'zpool replace'.
config:

	NAME        STATE     READ WRITE CKSUM
	tank        DEGRADED     0     0     0
	  mirror-0  DEGRADED     0     0     0
	    drive1  OFFLINE      0     0     0
	    drive2  ONLINE       0     0     0

errors: No known data errors

Step 3: Replace drive1

Run the following command to replace drive1 with drive3:

sudo zpool replace tank drive1 drive3

WARNING !!

drive3 is just a shorthand in this article for the new drive you want to add. Realistically, the actual argument is going to be something like /dev/drive/by-path/path-link-to-drive3, or /dev/drive/by-id/uuid-to-drive3

This command will begin the process of replaceing the first set of drives. This can take a long time depending on the size of your pool and the speed of your disks. You can check the progress of this process by running sudo zpool status again.

pool: tank
state: DEGRADED
status: One or more devices is currently being resilvered.  The pool will
	continue to function, possibly in a degraded state.
action: Wait for the resilver to complete.
scan: resilver in progress since Sat Nov 29 13:05:10 2025
	205G / 921T scanned at 462M/s, 17.3G / 921T issued at 39.1M/s
	8.02G resilvered, 0.56% done, 22:14:44 to go

config:

	NAME               STATE     READ WRITE CKSUM
	tank               DEGRADED     0     0     0
	  mirror-0         DEGRADED     0     0     0
      replacing-1      DEGRADED     0     0     0
	      drive1       OFFLINE      0     0     0
	      drive3       ONLINE       0     0     0 (resilvering)
	    drive2         ONLINE       0     0     0

errors: No known data errors

After this process is finished (check zpool status and drive1 should have disappeared), we can move on. For me, the first resilver took around 17 hours.

  pool: tank
 state: ONLINE
  scan: resilvered 921G in 17:14:15 with 0 errors on Sun Nov 30 06:19:25 2025
config:

	NAME         STATE     READ WRITE CKSUM
	tank         ONLINE       0     0     0
	  mirror-0   ONLINE       0     0     0
	    drive3   ONLINE       0     0     0
	    drive2   ONLINE       0     0     0

errors: No known data errors

Step 4: Take drive2 offline

Similarly as above, mark drive2 as offline.

sudo zpool offline tank drive2

  pool: tank
 state: DEGRADED
status: One or more devices has been taken offline by the administrator.
	Sufficient replicas exist for the pool to continue functioning in a
	degraded state.
action: Online the device using 'zpool online' or replace the device with
	'zpool replace'.
  scan: resilvered 921G in 17:14:15 with 0 errors on Sun Nov 30 06:19:25 2025
config:

	NAME         STATE     READ WRITE CKSUM
	tank         DEGRADED     0     0     0
	  mirror-0   DEGRADED     0     0     0
	    drive2   OFFLINE      0     0     0
	    drive3   ONLINE       0     0     0

errors: No known data errors

Step 5: Replace drive2

Same story as the last time, replace drive2 with drive4, and then wait for the resilvering to complete.

sudo zpool replace tank drive2 drive4

  pool: tank
 state: DEGRADED
status: One or more devices is currently being resilvered.  The pool will
	continue to function, possibly in a degraded state.
action: Wait for the resilver to complete.
  scan: resilver in progress since Sun Nov 30 12:32:33 2025
	216G / 921G scanned at 4.30G/s, 36.4G / 921G issued at 72.3M/s
	16.6G resilvered, 1.18% done, 11:57:13 to go
config:

	NAME             STATE     READ WRITE CKSUM
	tank             DEGRADED     0     0     0
	  mirror-0       DEGRADED     0     0     0
	    replacing-0  DEGRADED     0     0     0
	      drive2     OFFLINE      0     0     0
	      drive4     ONLINE       0     0     0  (resilvering)
	    drive3       ONLINE       0     0     0

errors: No known data errors

When done, run zpool status -v to confirm. In my case, the second resilver took only 10 hours.

  pool: tank
 state: ONLINE
  scan: resilvered 921G in 09:19:47 with 0 errors on Sun Nov 30 21:52:20 2025
config:

	NAME        STATE     READ WRITE CKSUM
	tank        ONLINE       0     0     0
	  mirror-0  ONLINE       0     0     0
	    drive4  ONLINE       0     0     0
	    drive3  ONLINE       0     0     0

errors: No known data errors

However, autoexpand was not enabled on my zpool. That is, the filesystem did not automatically expand to use the available capacity on the new, larger drives. This can be checked by sudo zpool list -v.

NAME         SIZE  ALLOC   FREE  CKPOINT  EXPANDSZ   FRAG    CAP  DEDUP    HEALTH  ALTROOT
tank         928G   919G  9.28G        -     2.73T     4%  99.0%  1.00x    ONLINE  -
  mirror-0   928G   919G  9.28G        -     2.73T    13%  99.0%      -    ONLINE
    drive4  3.64T      -      -        -         -      -      -      -    ONLINE
    drive3  3.64T      -      -        -         -      -      -      -    ONLINE

So I needed to also expand the drives in my mirror with the command sudo zpool online -e tank drive3. Surprisingly, I did not need to expand both drives in the mirror to expand the drive. After expanding, we have more space!

NAME         SIZE  ALLOC   FREE  CKPOINT  EXPANDSZ   FRAG    CAP  DEDUP    HEALTH  ALTROOT
tank        3.63T   919G  2.74T        -         -     0%  24.7%  1.00x    ONLINE  -
  mirror-0  3.63T   919G  2.74T        -         -     0%  24.7%      -    ONLINE
    drive4  3.64T      -      -        -         -      -      -      -    ONLINE
    drive3  3.64T      -      -        -         -      -      -      -    ONLINE

Step 6: Remove old hardware

Technically, you can physically disconnect a drive as soon as you mark it offline, but, if you have enough bays in your storage device, and not enough confidence in your mind to know which physical drive was drive1 and definitely not drive2, you can leave the offline drives in until both have been replaced.

Power down your device, and pull out your old drives. Your pool should now only depend on your shiny new drives, and you can submit your old drives for shredding (or software shred them, and donate them to charity).
